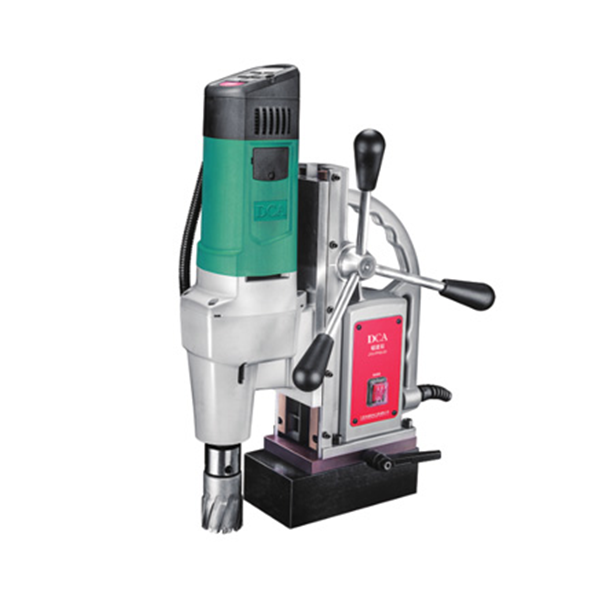

DCA Magnetic Drill Press 1500 W 50 MM
DCA Magnetic Drill Press 1500 W 50 MM
Magnetic Drill commonly known as adsorption drill, it comes with an electromagnet, can be adsorbed on the steel parts of the horizontal, side, top and curved (need to add spacers between the electromagnet and the surface) and drilling on. It effort than using an electric drill, labor, high precision machining.
Features a 15000N strong suction electromagnets, protective switch, ensures higher security. Compact structure, light weight, high flexibility, suitable for field installation and aerial work.
-
Rated Power Input?                 1600(W)
-
Max. Drilling Capacity?
-
           Twist Drill Bit                 ?23(mm)
-
            Core Drill Bit                 ?50(mm)
-
Magnetism?                            15000(N)
-
Tapping: Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â M6-M20(mm)
-
No-load Speed?130-260/260-520(r/min)
-
Max. Stroke ?                         220 (mm)
-
Connector ?                          Mt3 Shank
-
Net Weight ?                             24.0(kg)
