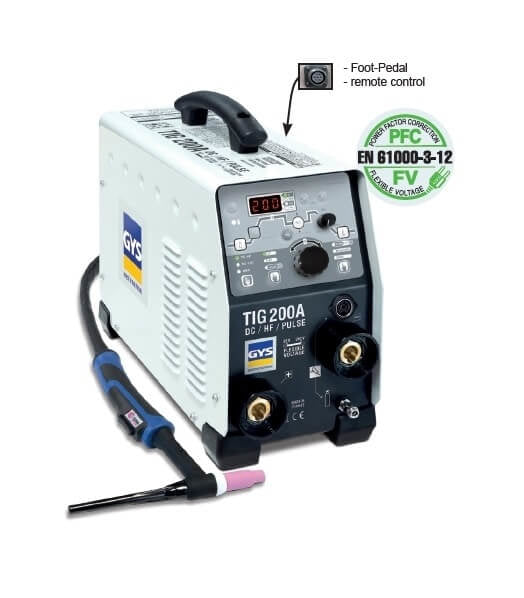

INVERTER TIG/ARC WELDING MACHINE TIG 200 DC FV,

This industrial TIG is designed to weld steel, stainless-steel and copper alloys. Its technology and features allow

welding with extreme accuracy in TIG and with the capability to weld cellulosic electrodes in MMA.

DISPLAY

Digital control panel for an easier use.

Up to 5 memory settings to save chosen welding parameters.

Start-Up:

• 2 functions : HF (without contact), or TIG LIFT (with contact).

• Integrated: «Adjust Ideal Position».200

The system helps you to position the electrode before the current

increases. A weak intensity is delivered, acting like a « light beam »

(available in 4T and 4Tlog).

3 Trigger Modes:

• 2 Times

• 4 Times

• 4 T «LOG»: The user can choose between 2 welding currents (Hot /

Cold) at any time by a short press on the torch trigger.

Automatic Torch Detection:

Possibility to connect a simple or double button torch, with or without built-in

3 Parameters - DC:

Spot welding to prepare the piece before completing the weld.

• TIG:

• TIG Pulse:

• TIG SPOT:

Settings: pre-gas / current increase / intensity (1 or 2 current settings are possible

in 4Tlog mode) / post-gas / current decrease.

- Easy Pulse Mode: The user defines the average welding current.

The machine will automatically determine the frequency and the hot/cold current.

- Normal Mode: The user defines the hot and cold current and the pulse frequency
