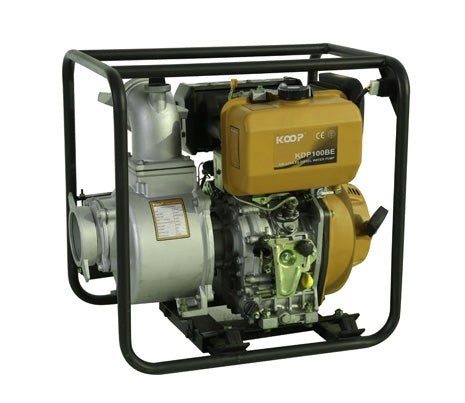

Diesel Water Pump KDP100B 4"

Diesel Water Pump KDP100B 4"

Regular price 253.000 KWD
Regular price Sale price 253.000 KWD
Discount Sold out
Shipping calculated at checkout.
Model               KDP100B/L/LE
Suction / Discharge Port Diameter[mm]  100( 4")
Cont. Capacity[m³/h]  40
Cont. Head [M] 19
Self-priming Time[s/4m] 180
Max.Suction Head[M] 7.0
Fuel Tank Capacity[L] B: small fuel tank ( 5.5L) L: large fuel tank( 12.5L)
Engine Type     KD186FA/FAE
Starting System    F: Recoil starter  E: electric start
Engine Type         1-Cylinder ,4-Stroke ,Air-cooled,    Veritical
Broke * Stroke[mm] 86*72
Displacement   [L] 0.418
Compression Ratio   19.5:1
Rated Rotation Speed [rpm] 3600
Rated Power[Kw] 6.6
Lube[L] 1.65
Fuel Type      0#(summer), -10#(winter) Diesel oil
Lube     SAE10W30 ( above CD grade )
Overall Diemension [mm](L*W*H)    650*470*700
N.W[Kg] 69
