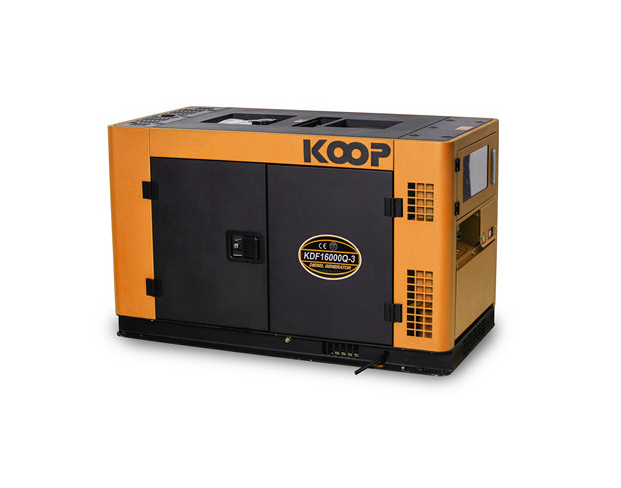

Diesel Generator KDF16000Q(-3)1600 ????? ???? ??????

Diesel Generator KDF16000Q(-3)1600 ????? ???? ??????

Regular price 1,540.000 KWD
Regular price Sale price 1,540.000 KWD
Discount Sold out
Shipping calculated at checkout.
Model  KDF16000Q(-3)
Frequency [Hz]  50                        60
Voltage [V] 220,230,240,110/220,115/230,120/240,220/380,230/400,240/415
Rated Power  [Kva] 11.0(13.75)                12.0(15.0)
Max. Power  [Kva]    12.0(15.0)                13.0(16.0)
Phase Number   Single/Three
Excitation Transistorized    Self-excitation , brush
Power Factor Cos ?      1.0(0.8)
Insulation Grade F
Fuel Capacity   [L] 26
Noise Level [Db](@ 7m)  75
Engine Model     KD292F
Engine Type     2-cylinder ,4-Stroke, Air-cooled
Starting System    Electric Starting
Broke * Stroke  [mm] 2-92*75
Displacement  [L] 0.997
Compression Ratio    19?1
Rated Rotation Speed [rpm] 3000              3600
Rated Power   [Kw]  14.0             15.0
Lube  [L] 2.75
Fuel Type      0#(summer), -10#(winter) diesel oil
Lube     SAE10W30 ( above CD grade )
Overall Diemension [mm] ( L*W*H)    1250*650*760
Net Weight  [Kg]   340
