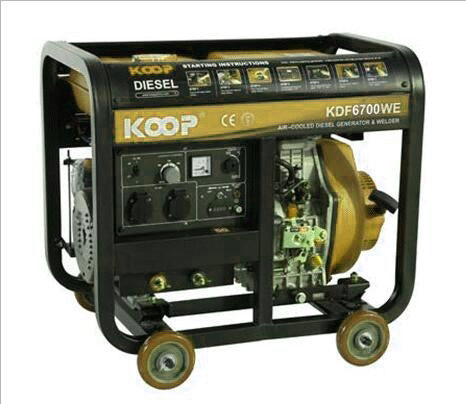

Diesel Welding Generator KDF6700WE ?????? ???? + ???? ????
Diesel Welding Generator KDF6700WE ?????? ???? + ???? ????
Regular price
550.000 KWD
Regular price
Sale price
550.000 KWD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Model | KDF6700WE |
| Rated Frequency [Hz] | 50 60 |
| Rated Voltage [V] | 220,230,240,110/220,115/230,120/240 |
| Rated Output Power [Kva] | 2.0 2.2 |
| Welding Voltage Without Load [V] | 50~65 |
| Rated Current [A] | 160 |
| Work Voltage [V] | 25~30 |
| Current Regulation Range[A] | 50 ~ 180 |
| Welding Load Continuous Ration | 60% |
| Phase Number | Single Phase |
| Excitation Transistorized | Self-excitation , brush |
| Power Factor ? | 1 |
| Insulation Grade | F |
| Fuel Tank Capacity [L] | 12.5 |
| Frame Type | 35 * 35mm Squre tube frame 35 * 35mm |
| Engine Model | KD186FAE |
| Starting System | Electric starting |
| Engine Type | 1-Cylinder ,4-Stroke, Air-cooled,Veritical |
| Broke * Stroke [mm] | 86* 72 |
| Displacement | 0.418 |
| Compression Ratio | 19.5?1 |
| Ration Rotation Speed [rpm] | 3000 3600 |
| Rated Power | 5.8 6.6 |
| Power-take-off | Crankshaft |
| Lube [L] | 1.65 |
| Fuel Type | 0#(summer), -10#(winter), Diesel oil |
| Lube | SAE10W30 ( above CD grade ) |
| Low Oil Pressure Alarm System | With |
| Overall Diemension [mm]( L*W*H) | 750*515*640 |
| Net Weight [Kg] | 116 |
