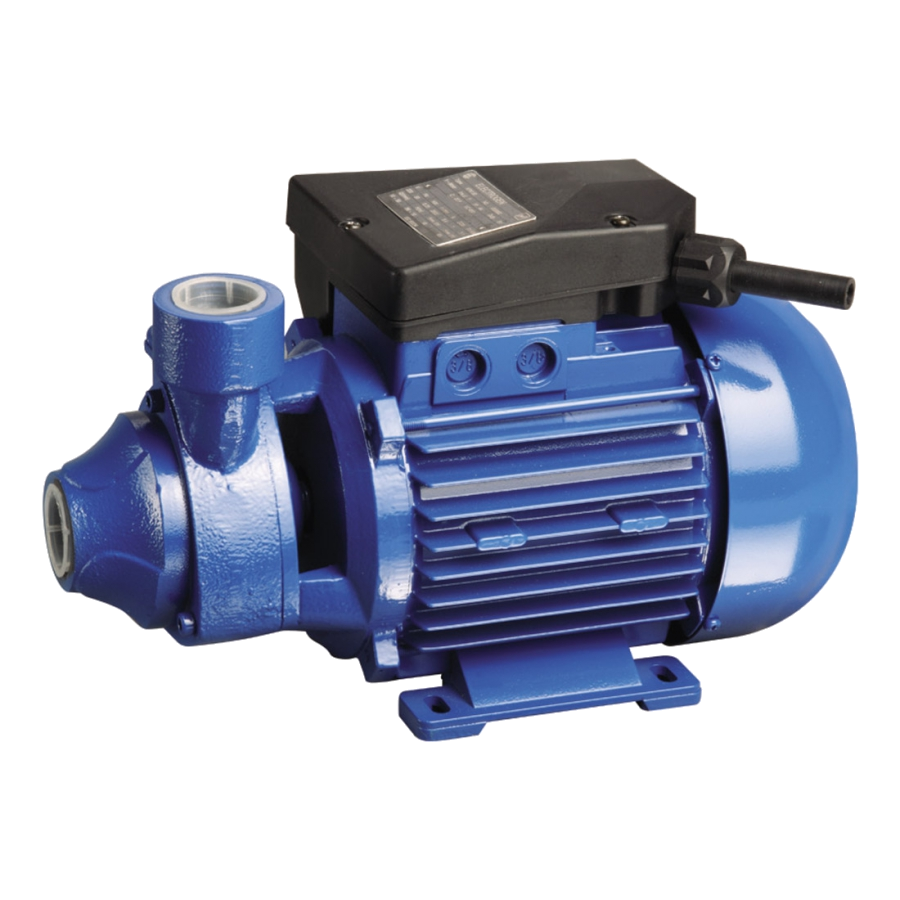

Supreme Water Pump KPM-50 0.5HP

Capacity: m3/h = 2.1 - l/m = 35 Total head: H(m) = 34 Power: kW = 0,37 Voltage: 230V-50 Hz

OPERATING CONDITIONS

Liquid temperature: up to 60°C

Ambient temperature: up to 40°C

Total suction lift: up to 7 m

Continuous duty MOTOR Two-Pole induction motor (n = 2850 min-1) Insulation Class: F Protection: IP 44 MATERIALS

Pump body: Cast Iron

Motor support: Cast Iron

Impeller: Brass

Shaft with rotor: Stainless Steel AISI 304 Mechanical seal: Ceramic/Graphite/NBR
